SMD Tweezers
Smooth handling and positioning of all SMD components. Different tips and angles for specific applications. Satin antiglare finish and ergonomic design. Modifications or special models available on request. Available as reverse action model.
Anti-magnetic anti-acid stainless steel (SA)
- Low carbon austenitic steel (Material number 1.4435, DIN X2CrNiMo18-14-3, AISI number 316L)
- Contains from 16.5 to 18.5 wt% chromium and has important quantities of nickel and molybdenum as additional alloying elements
- Non-magnetizable
- Good corrosion resistance to most chemicals, salts and acids
- Generally used where corrosion resistance and toughness are primary requirements
- Typical applications include tweezers for the electronic industry, watch-makers, jewelers and laboratory and medical applications in moderately aggressive chemical environments

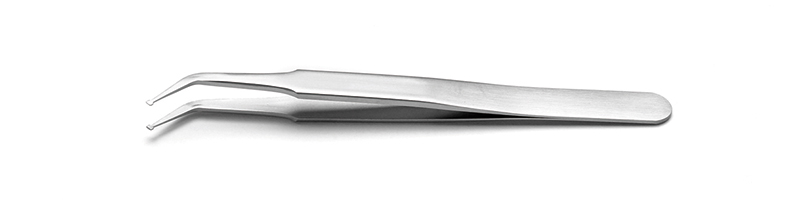

Style SM103
SMD tweezers for handling and positioning at 45° angle
| Catalog | Style | Material | OAL mm | A mm | B mm | Price | Unit | |
|---|---|---|---|---|---|---|---|---|
| SM103.SA | Style SM103 | Anti-Acid/Anti-Mag SS | 115 | 0.30 | 1.60 | 26.00 | each |

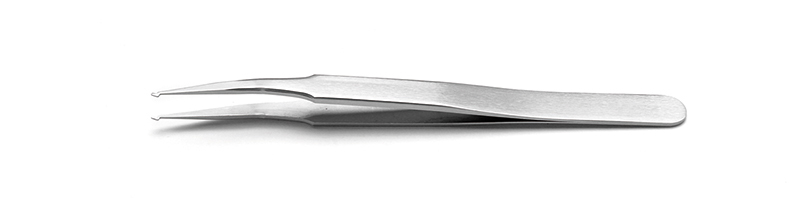

Style SM104
SMD tweezers for handling and positioning sot packages and monolithic chip capacitors
| Catalog | Style | Material | OAL mm | A mm | B mm | Price | Unit | |
|---|---|---|---|---|---|---|---|---|
| SM104.SA | Style SM104 | Anti-Acid/Anti-Mag SS | 120 | 0.35 | 1.70 | 26.00 | each |

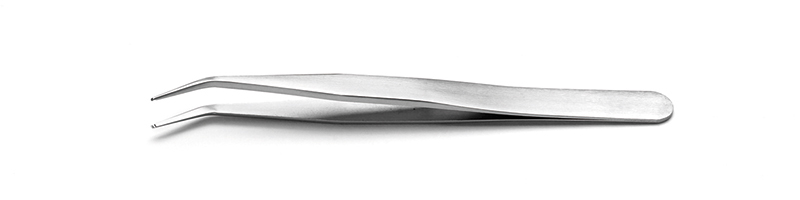

Style SM115
SMD tweezers for handling and positioning 1mm cylindrical devices, grooved at 30° angle
| Catalog | Style | Material | OAL mm | A mm | B mm | Price | Unit | |
|---|---|---|---|---|---|---|---|---|
| SM115.SA | Style SM115 | Anti-Acid/Anti-Mag SS | 115 | 0.60 | 0.85 | 28.00 | each |

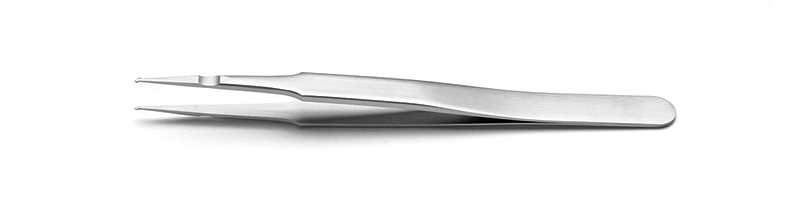

Style SM108
SMD tweezers for handling and positioning and soldering 1mm wide components.
| Catalog | Style | Material | OAL mm | A mm | B mm | Price | Unit | |
|---|---|---|---|---|---|---|---|---|
| SM108.SA | Style SM108 | Anti-Acid/Anti-Mag SS | 120 | 0.30 | 1.50 | 26.00 | each |

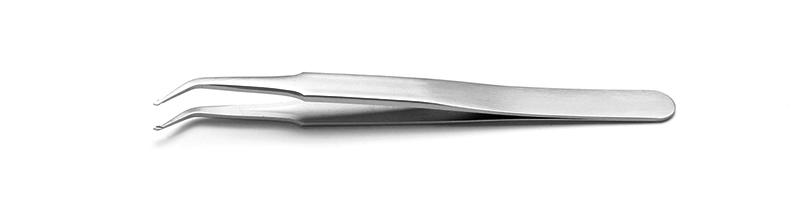

Style SM111
SMD tweezers for positioning 5mm monolithic chip capacitors, grooved.
| Catalog | Style | Material | OAL mm | A mm | B mm | Price | Unit | |
|---|---|---|---|---|---|---|---|---|
| SM111.SA | Style SM111 | Anti-Acid/Anti-Mag SS | 115 | 0.50 | 1,50 | 28.00 | each |

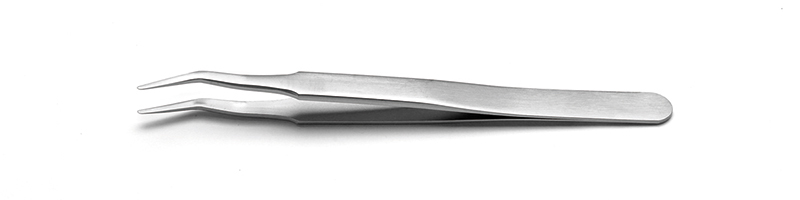

Style SM107
SMD tweezers for positioning flat devices, double bent.
| Catalog | Style | Material | OAL mm | A mm | B mm | Price | Unit | |
|---|---|---|---|---|---|---|---|---|
| SM107.SA | Style SM107 | Anti-Acid/Anti-Mag SS | 120 | 0.15 | 1.40 | 26.00 | each |

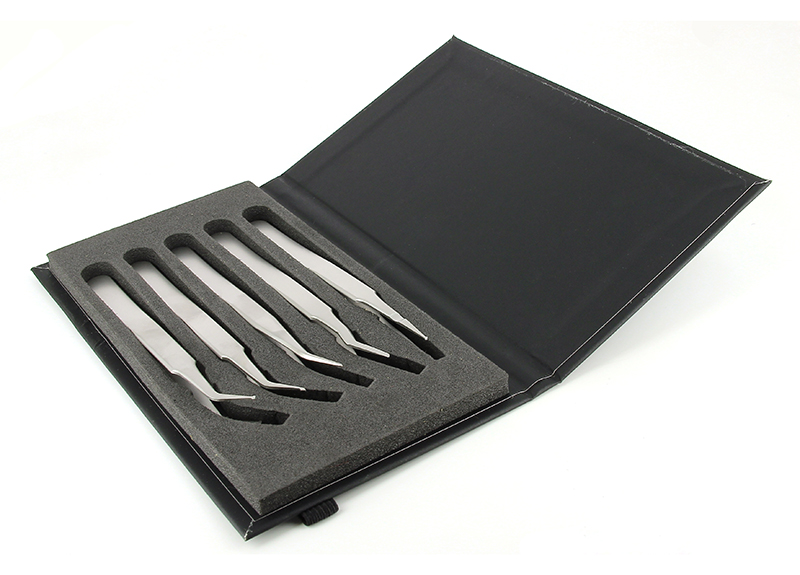

Kit
Kit of five SMD tweezers including SM103, SM107, SM108, SM111, and SM115. Tweezers are also available individually.
| Catalog | Kit | Styles | Price | Unit | |
|---|---|---|---|---|---|
| K5SMDF | Kit of 5 | Styles SM103, SM107, SM108, SM111, and SM115 | 156.00 | each |
