Epoxy Coated Tweezers

General notes Coating type NE

This conductive epoxy coating is essentially comprised of polyester and epoxy resins, plus the electrically conductive additives.

Mechanical properties:
Impact resistant surface with excellent flow; good elasticity

Heat resistence:
It can operate continuosly at temperatures up to 120°C

Unique electrical properties:
This coating provides an ESD Safe coating with surface resistance of 10^5 - 10^6

Chemical resistance:
Good resistance to many diluted acids and alkalis. Contact with organic solvents is possible conditionally and for short term. Resistance should be investigated for the case in question.

Anti-magnetic anti-acid stainless steel (SA)

  • Low carbon austenitic steel (Material number 1.4435, DIN X2CrNiMo18-14-3, AISI number 316L)
  • Contains from 16.5 to 18.5 wt% chromium and has important quantities of nickel and molybdenum as additional alloying elements
  • Non-magnetizable
  • Good corrosion resistance to most chemicals, salts and acids
  • Generally used where corrosion resistance and toughness are primary requirements
  • Typical applications include tweezers for the electronic industry, watch-makers, jewelers and laboratory and medical applications in moderately aggressive chemical environments

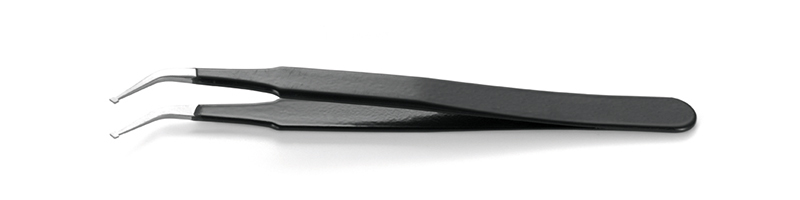

Style SM103

ESD epoxy coated tweezers with handling, positioning at 45° angle

Style SM103
Catalog Style Material Finish OAL mm A mm B mm Price Unit
SM103.SA.NE Style SM103 Anti-Acid/Anti-Mag SS Epoxy Coated 115 0.30 1.60 37.00 each

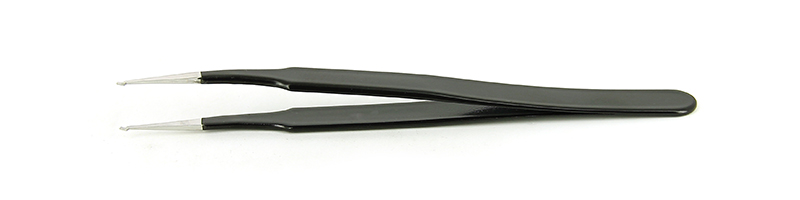

Style SM104

ESD epoxy coated tweezers with handling, positioning sot packages, monolithic chip capacitors

Style SM104
Catalog Style Material Finish OAL mm A mm B mm Price Unit
SM104.SA.NE Style SM104 Anti-Acid/Anti-Mag SS Epoxy Coated 120 0.35 1.70 37.00 each

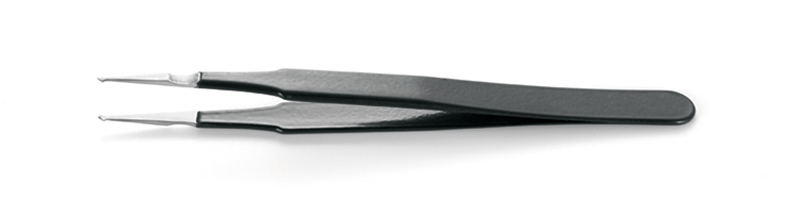

Style SM108

ESD epoxy coated tweezers with positioning, soldering 1mm wide components

Style SM108
Catalog Style Material Finish OAL mm A mm B mm Price Unit
SM108.SA.NE Style SM108 Anti-Acid/Anti-Mag SS Epoxy Coated 120 0.30 1.50 37.00 each

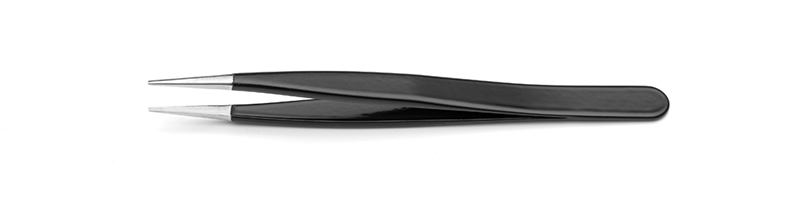

Style 00

ESD epoxy coated tweezers with strong, thick tips

Style 00
Catalog Style Material Finish OAL mm A mm B mm Price Unit
00.SA.NE Style 00 Anti-Acid/Anti-Mag SS Epoxy Coated 120 0.40 0.25 26.88 each

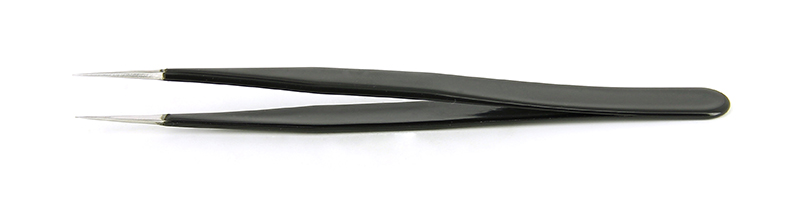

Style 1

ESD epoxy coated tweezers with fine tips

Style 1
Catalog Style Material Finish OAL mm A mm B mm Price Unit
1.SA.NE Style 1 Anti-Acid/Anti-Mag SS Epoxy Coated 125 0.10 0.15 26.88 each

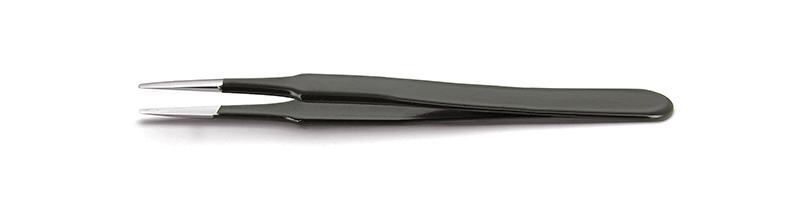

Style 2A

ESD epoxy coated tweezers with flat, accurate, round tips

Style 2A
Catalog Style Material Finish OAL mm A mm B mm Price Unit
2A.SA.NE Style 2A Anti-Acid/Anti-Mag SS Epoxy Coated 125 0.20 2.20 26.88 each

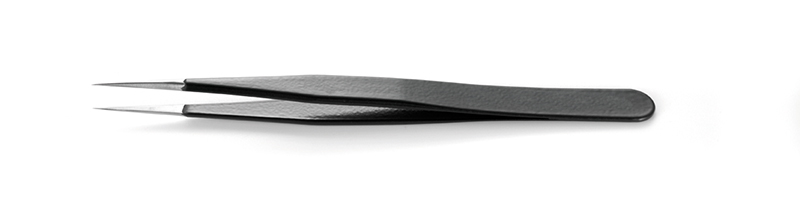

Style 3

ESD epoxy coated tweezers with very sharp, fine tips

Style 3
Catalog Style Material Finish OAL mm A mm B mm Price Unit
3.SA.NE Style 3 Anti-Acid/Anti-Mag SS Epoxy Coated 120 0.15 0.20 26.88 each

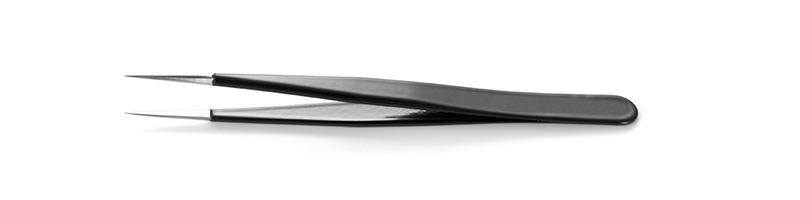

Style 3C

ESD epoxy coated tweezers with very sharp, fine tips

Style 3C
Catalog Style Material Finish OAL mm A mm B mm Price Unit
3C.SA.NE Style 3C Anti-Acid/Anti-Mag SS Epoxy Coated 110 0.15 0.10 26.88 each

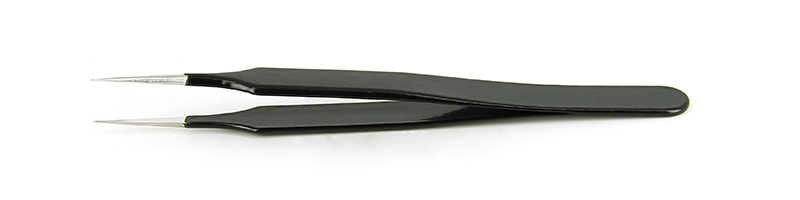

Style 4

ESD epoxy coated tweezers with fine tips

Style 4
Catalog Style Material Finish OAL mm A mm B mm Price Unit
4.SA.NE Style 4 Anti-Acid/Anti-Mag SS Epoxy Coated 110 0.10 0.10 28.13 each

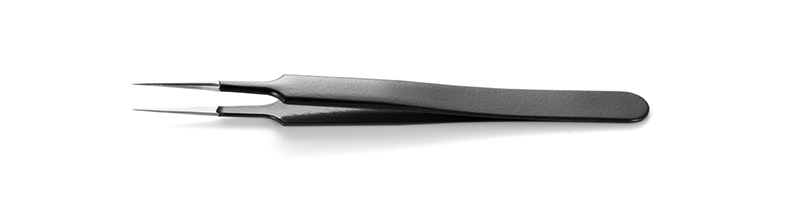

Style 5

ESD epoxy coated tweezers with fine, sharp tips

Style 5
Catalog Style Material Finish OAL mm A mm B mm Price Unit
5.SA.NE Style 6 Anti-Acid/Anti-Mag SS Epoxy Coated 110 0.05 0.15 28.13 each

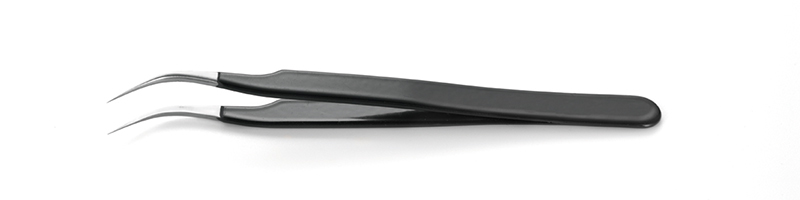

Style 7

ESD epoxy coated tweezers with fine, curved tips

Style 7
Catalog Style Material Finish OAL mm A mm B mm Price Unit
7.SA.NE Style 7 Anti-Acid/Anti-Mag SS Epoxy Coated 120 0.15 0.10 28.13 each

Style 7A

ESD epoxy coated tweezers with fine, curved tips

Style 7A
Catalog Style Material Finish OAL mm A mm B mm Price Unit
7A.SA.NE Style 7A Anti-Acid/Anti-Mag SS Epoxy Coated 120 0.15 0.25 28.13 each

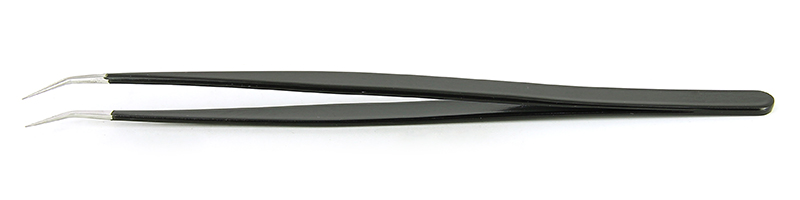

Style 775

ESD epoxy coated tweezers with bent, fine tips

Style 775
Catalog Style Material Finish OAL mm A mm B mm Price Unit
775.SA.NE Style 775 Anti-Acid/Anti-Mag SS Epoxy Coated 155 0.20 0.35 27.25 each

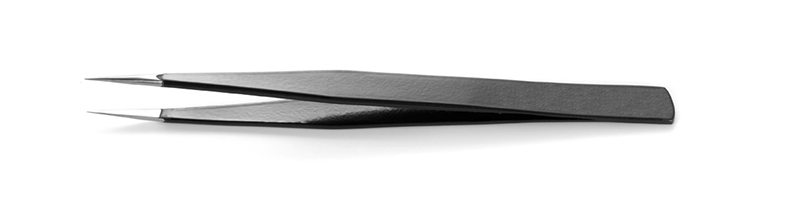

Style AA

ESD epoxy coated tweezers with sharp, fine tips

Style AA
Catalog Style Material Finish OAL mm A mm B mm Price Unit
AA.SA.NE Style AA Anti-Acid/Anti-Mag SS Epoxy Coated 125 0.30 0.25 24.50 each

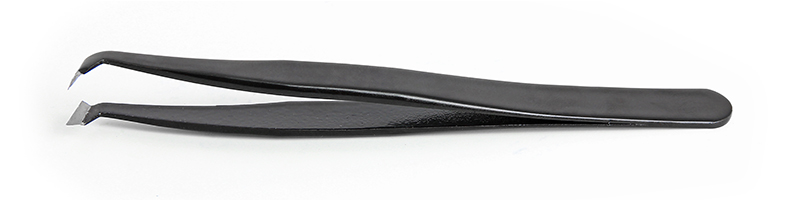

Style 54MW

ESD epoxy coated cutting tweezers, full body: cutting, predominantly angled blades

Style 54MW
Catalog Style Material Finish OAL mm A mm B mm Price Unit
54MW.C.N Style 54MW Carbon Steel Epoxy Coated full body 115 5.4 8 75.44 each

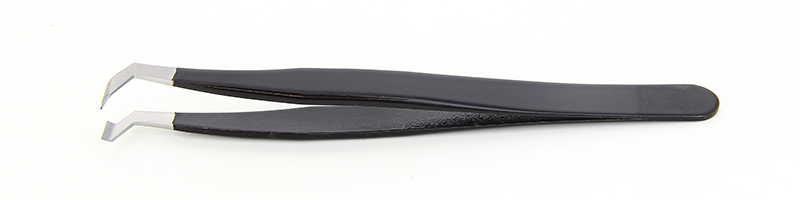

Style 14AGW

ESD epoxy coated cutting tweezers: cutting, predominantly angled blades

Style 14AGW
Catalog Style Material Finish OAL mm A mm B mm Price Unit
14AGW.C.NE Style 14AGW Carbon Steel Epoxy Coated 115 4.2 6 78.38 each

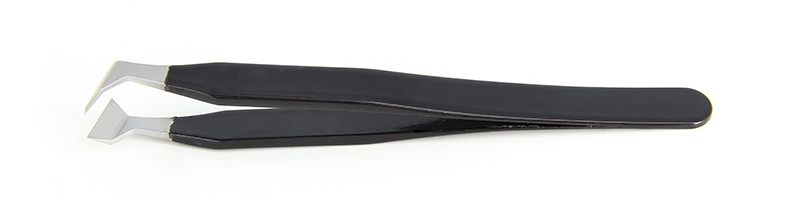

Style 15A

ESD epoxy coated cutting tweezers: cutting, angled blades

Style 15A
Catalog Style Material Finish OAL mm A mm B mm Price Unit
15A.C.NE Style 15A Carbon Steel Epoxy Coated 120 8.5 12 75.44 each

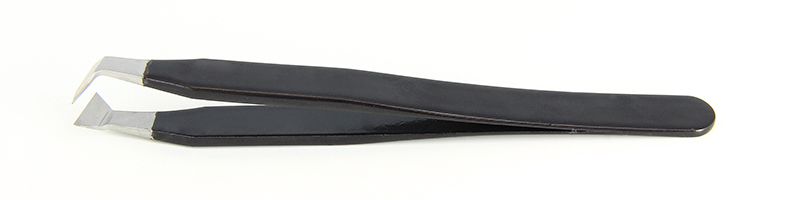

Style 15AGW

ESD epoxy coated cutting tweezers: cutting, predominantly angled blades

Style 15AGW
Catalog Style Material Finish OAL mm A mm B mm Price Unit
15AGW.C.NE Style 15AGW Carbon Steel Epoxy Coated 115 9.5 10 75.44 each

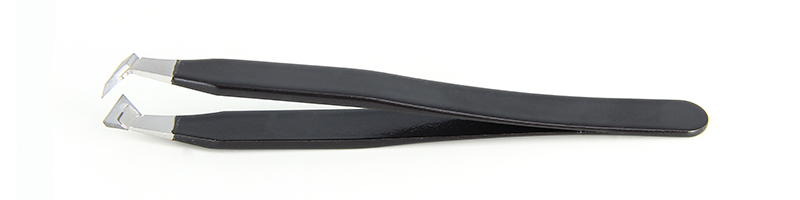

Style 15AGHM

ESD epoxy coated cutting tweezers: cutting, Tungsten carbide insert, predominantly angled blades

Style 15AGHM
Catalog Style Material Finish OAL mm A mm B mm Price Unit
15AGHM.SA.NE Style 15AGHM AntiAcid/AntiMag SS Epoxy Coated 115 10 10 118.00 each

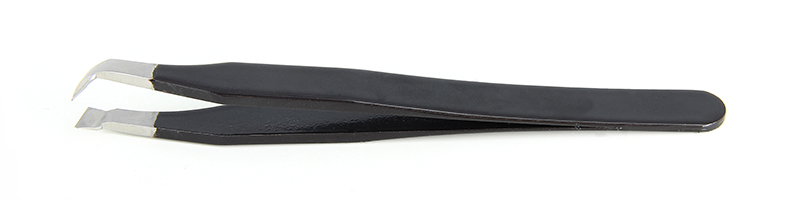

Style 15ARW

ESD epoxy coated cutting tweezers: cutting, predominantly angled blades

Style 15ARW
Catalog Style Material Finish OAL mm A mm B mm Price Unit
15ARW.C.NE Style 15ARW Carbon Steel Epoxy Coated 115 9 6 75.44 each

Kits of ESD Epoxy Coated Tweezers

ESD epoxy coated tweezers

Catalog Kit Styles Finish Material Price Unit
K3.SA.NE Kit of 3 Styles 775, SM103, and SM104 Epoxy Coated - 75.26 each
K4F.SA.NE Kit of 4 Styles SM103, SM108, 3, and 7A Epoxy Coated - 103.00 each

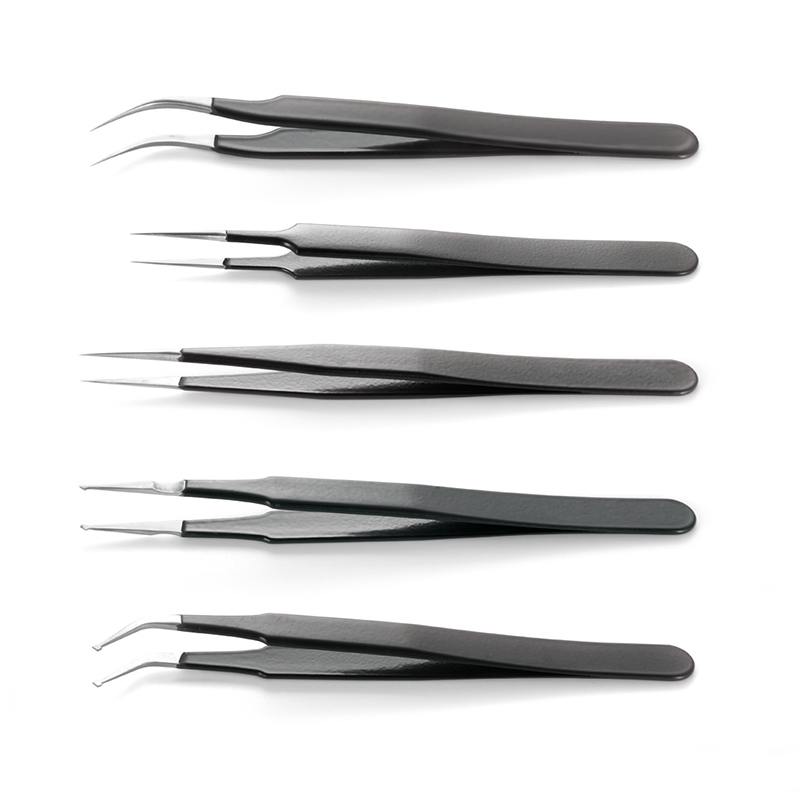

K5F.SA.NE Kit of 5 Styles SM103, SM108, 3, 5, and 7A Epoxy Coated - 131.12 each
K6F.SA.NE Kit of 6 Styles SM103, SM108, 3, 3C, 5, and 7A Epoxy Coated - 158.00 each
