Tungsten Carbide Cutters

Ideal-tek Swiss Made Tungsten Carbide Cutters with Ergonomic Handles*

- 81 Rockwell Hardness (HRC)
- Tungsten carbide blades
- Engineered for hard wires
- 2-Component ESD-safe user-friendly Ergonomic handles with a soft comfortable gripping surface
- 2 handle sizes: Ergo-tek (E) and Ergo-tek slim (ES) to custom fit personal preference and application
- Lap joint with screw in order to achieve a high level of strength and precision
- Nuts made of hardened alloy steel to resist high cutting load

Applications:

- Stents
- Braided mesh
- Catheters
- Single/Multiple fliers
- Guide wires
- Lateral/Internal cuts

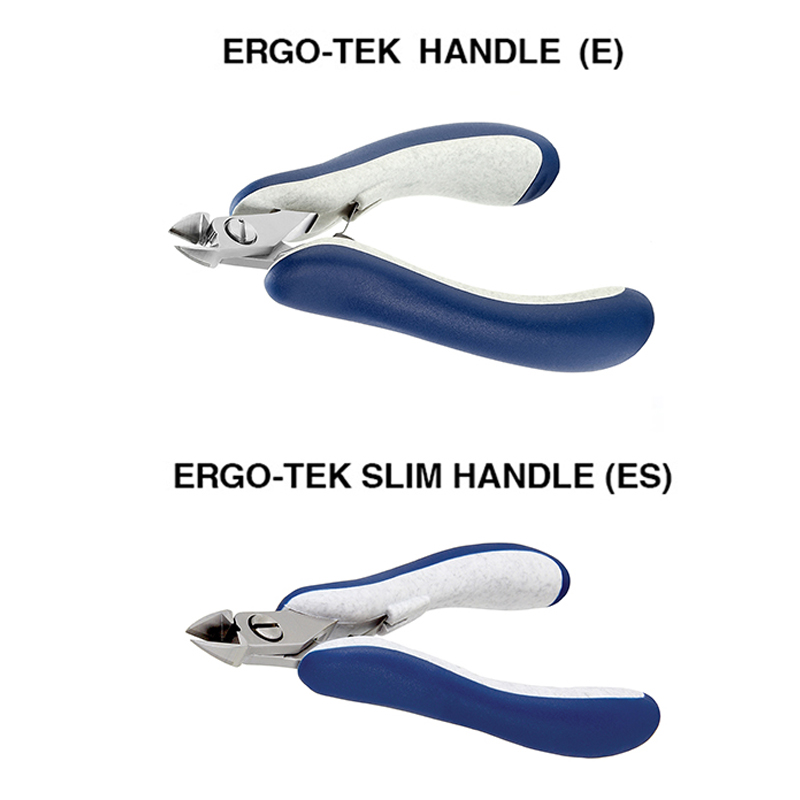

Ergo-tek Cutters with Oval Heads

Robust, slim shape, an optimum balance between durability and accessibility. ESD safe handles.

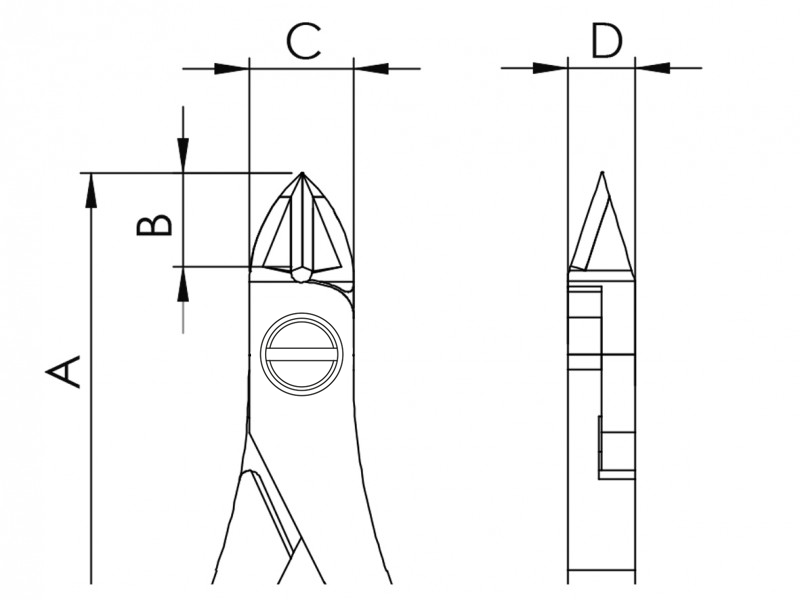

Ergo-tek Cutters with Oval Heads diagram
Catalog Head Cutting Edges Handle A mm B mm C mm D mm E mm F mm Price Unit
E140STX Small Oval head Semi-flush Regular 125 8 10 6.4 - 0.3 149.00 each
E141PTTX Small Oval head Flush Regular 125 8.5 10 6.4 - - 149.00 each
E141TX Small Oval head Flush Regular 125 10 10 6.4 - - 149.00 each
E142TX Small Oval head Full-flush Regular 125 10 10 6.4 - - 149.00 each
ES140STX Small Oval head Semi-flush Slim 120 8 10 6.4 - 0.3 149.00 each
ES141PTTX Small Oval head Flush Slim 120 8.5 10 6.4 - - 149.00 each
ES141TX Small Oval head Flush Slim 120 10 10 6.4 - - 149.00 each
ES142TX Small Oval head Full-flush Slim 120 10 10 6.4 - - 149.00 each

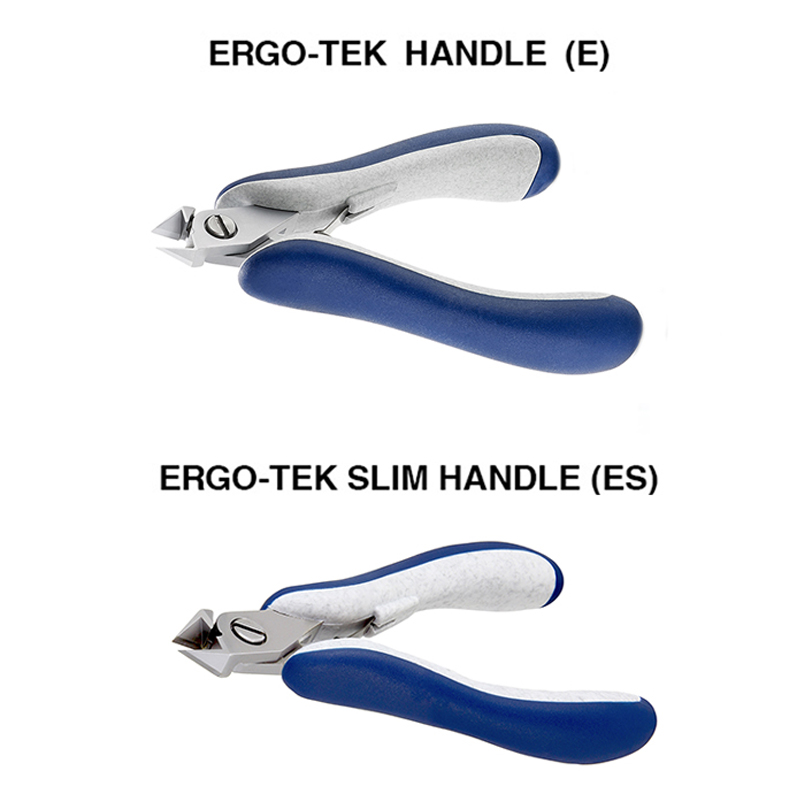

Ergo-tek Cutters with Tapered Heads

Pointed head shape, slim and optimum balance between durability and accessibility. ESD safe handles.

Ergo-tek Cutters with Tapered Heads diagram
Catalog Head Cutting Edges Handle A mm B mm C mm D mm E mm F mm Price Unit
E351TX Large Tapered head Flush Regular 125 12.5 7.5 6.4 0.7 0.4 149.00 each
E351PTTX Large Tapered head Flush Regular 123 6.5 12.5 6.4 4.3 - 149.00 each
E351UFTX Large Tapered head Flush Regular 123 7.5 12.5 6.4 0 0.5 149.00 each
E352TX Large Tapered head Full-Flush Regular 123 12.5 7.5 6.4 0.7 0.4 149.00 each
ES351TX Large Tapered head Flush Slim 120 7.5 12.5 6.4 0.7 0.4 149.00 each
ES351PTTX Large Tapered head Flush Slim 118 6.5 12.5 6.4 4.3 - 149.00 each
ES351UFTX Large Tapered head Flush Slim 118 7.5 12.5 6.4 0 0.5 149.00 each
ES352TX Large Tapered head Full-Flush Slim 118 7.5 12.5 6.4 0.7 0.4 149.00 each

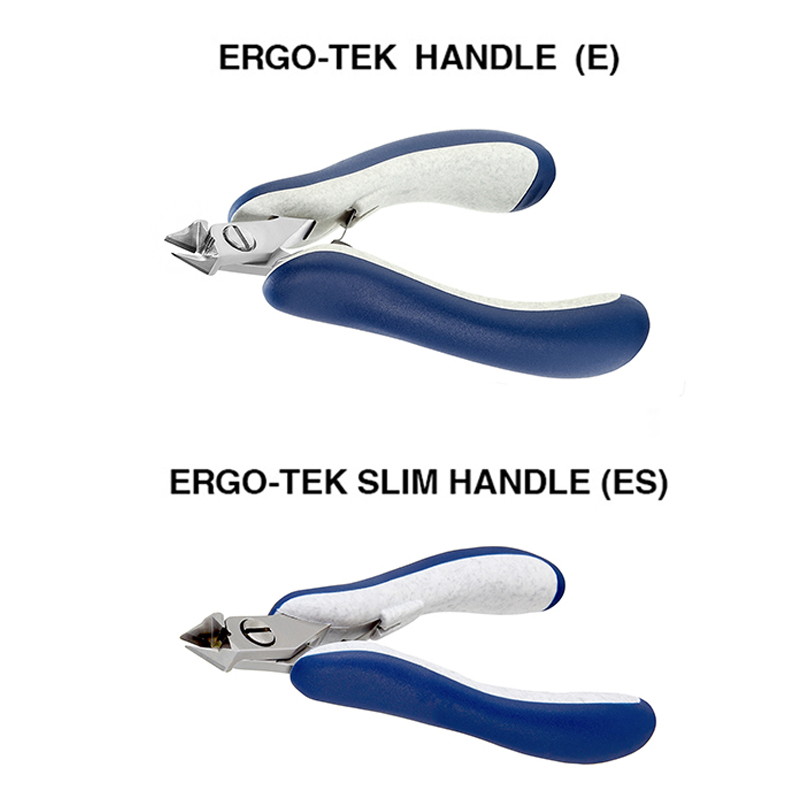

Ergo-tek Cutters - Tapered & Relieved head

Ergo-tek Cutters with Tapered & Relieved heads. ESD safe handles.

Ergo-tek Cutters - Tapered & Relieved head diagram
Catalog Head Cutting Edges Handle A mm B mm C mm D mm E mm F mm Price Unit
E541TX Small Tapered & Relieved head Flush Regular 125 10 8.5 6.4 0.7 0.3 149.00 each
E542TX Small Tapered & Relieved head Full-flush Regular 125 10 8.5 6.4 0.7 0.3 149.00 each
E551TX Large Tapered & Relieved head Flush Regular 125 12.5 8 6.4 0.7 0.3 149.00 each
E552TX Large Tapered & Relieved head Full-flush Regular 125 12.5 8 6.4 0.7 0.3 149.00 each
ES541TX Small Tapered & Relieved head Flush Slim 120 8.5 10 6.4 0.7 0.3 149.00 each
ES542TX Small Tapered & Relieved head Full-flush Slim 120 8.5 10 6.4 0.7 0.3 149.00 each
ES551TX Large Tapered & Relieved head Flush Slim 120 8 12.5 6.4 0.7 0.3 149.00 each
ES552TX Large Tapered & Relieved head Full-flush Slim 120 8 12.5 6.4 0.7 0.3 149.00 each
